Features:

• 3 1/2 digts LCD, Max. reading 1999
• Audible continuity
• Auto Power Off
• Low Battery Indication
• Overload Protection

Specifications:

Voltage DC: 200m/2/20/200/600V

Voltage AC: 200m/2/20/200/600V

Current DC: 2m/20m/200m/10A

Current AC: 2m/20m/200m/10A

Resistance: 200/2K/20K/200K/2M/20M/200MΩ

Capacitance: 2n/20n/200n/2µ/20µF

Diode Check: 3V/0.8mA

hEF: Vce=3V, lb=10µA

Power Source: 9V battery (6F22)

Dimensions: 86x186x33mm

Weight: 275g (with Battery)

Accessories: Test Lead, Battery, Users Manual, Holster

Order No	Description

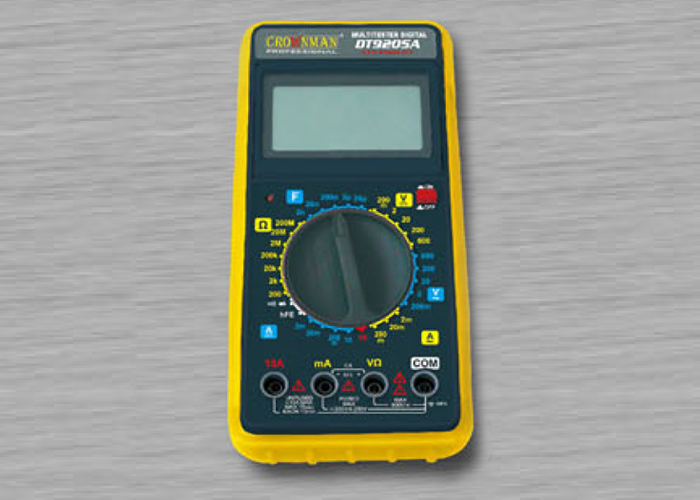

1730002	DT9205A Digital Multimeter
